Liquid gravity filling is the simplest filling method. The operation of gravity filling machines allows them to run with a minimum of maintenance. The filling operation consists of, raising the containers on the platform until it contacts the filling nozzle. The platform then continues to raise the container against the stem, opening the filling valve and creating a seal against the container. With the filling valve open, the liquid drains into the container. The air in the container flows out trough the vent tube into the space above the liquid in the filler tank. At the predetermined time (adjustable timer) after the container is filled, it is lowered from its filling position, closing the filling nozzle. The amount of liquid filled in to the container is controlled by the size of the stem, in simple terms the container is filled to a level dictated by the breather hole this is adjusted by using packing seals. This machine is pneumatically powered

Gravity Filling Machine 4 Head

Three Step Listing

Contact Us to Day

To Arrange A Vist

Price

(Relating To Age And Condition)

We Market For You

Stock Items

Over Wrapping Cellophane

Transfer Unit Bottles Boxes

We Purchase Machinery And Can List You Packaging Machinery

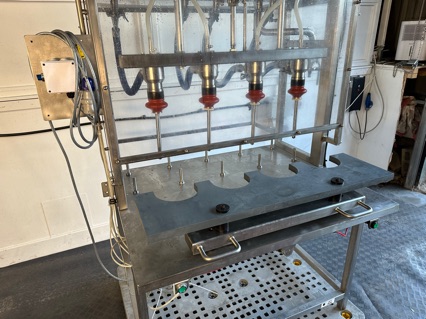

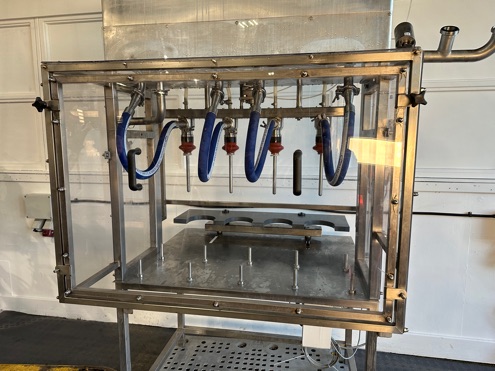

New in to stock 4 head gravity filling machine with change part for 2L containers. Adjustable hight and filling time for different containers the container opening must fit around the filling nozzle.

4 heads filling machine gravity filling machine

Demonstration of the past gravity filling machine we have have in stock:
