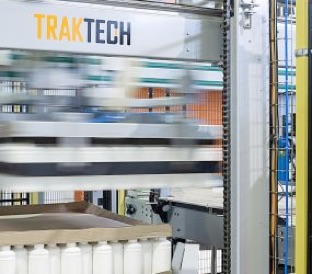

Depalletisers for empty plastic, glass or metal containers. We have partnered with Auto-Pack Traktech machinery.
Container handling at the beginning of a production line is one of the most critical and cost saving. Depalletisers remove operators and give continuous container feeding with out interruption.
With regard to empty bottle depalletisers, most companies need machines that maximize the production space, facilitate correct management of the empty containers and make the most of the time taken to load, unload and handle the containers.
This equipment is designed to increase the speed of your production and packaging process, which can also be integrated into the beginning of an existing production line, with the aim of saving space and increasing flexibility and efficiency.
We can supply semi-automatic models to high-speed models operated and controlled simply by a push button. Taking these factors into account,
Applications of bottle depalletisers
The main application of a depalletizer is to extract the empty glass, plastic or metal containers from the pallet, to place them on a conveyor on the packaging line.
Our depalletizers are designed to use pallets measuring 1000 x 1200 mm, with a maximum pallet height of 2500 mm (pallet included).
There is no limit for different sizes of bottles or different numbers of layers, neither do they require the intervention of a worker to change the format, as each format has its parameters entered on the screen.
Depalletizers can work with flat trays or trays with the covers facing downwards, except the DVI model, which can only work with trays with the covers facing upwards.
Sectors that this solution can cater for:
Food.
Drinks.
Chemical.
Pharmaceutical.
Cosmetics.
Technical characteristics of the depalletisers

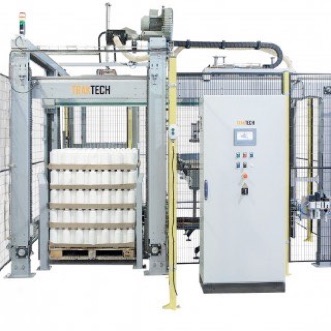

The depalletizing station consists of an elevator, where the platform is raised to the unloading height. The position of the elevator and its starting/stopping is controlled by an encoder system where each format has its own parameters.
The depalletizer has a rigid stainless-steel structure, made of tubes, folded sheet metal and sections, adequate to receive and support different types of equipment.
The containers are transferred to the exit conveyor or the reception hopper, by means of a line to line pusher system or a suction system, depending on the type of bottle.
When one layer is finished, the separator is automatically removed, by a pick and place, and put in the storage area.
In cases where the pallet is “tall” (up to 2500 mm), the exit conveyor is equipped with a “Side Grip” conveyor at the end to move the bottles to the normal working height of the filling lines (1000 mm).
Maximum production: 18,000 BPH.
Types of depalletisers
According to the material, the geometry of the container and speed, Traktech offers different types of depalletisers:
DVI depalletizer, by suction and inliner: A suction head lifts the while layer of containers and moves them to the output aligner.
DPI depalletizer, by pushing and inliner: The containers are pushed to the simple conveyor or exit aligner.
DPB depalletizer, by bulk pushing: The containers are pushed to a large capacity hopper that feeds a bottle positioner.
All our depalletisers can be automated with elements such as:
Full pallets in waiting.
Empty pallet grouper.
Automatic layer removal and storage.
Cleaning of containers during the descent to the line.
The Depalletizer in a production line

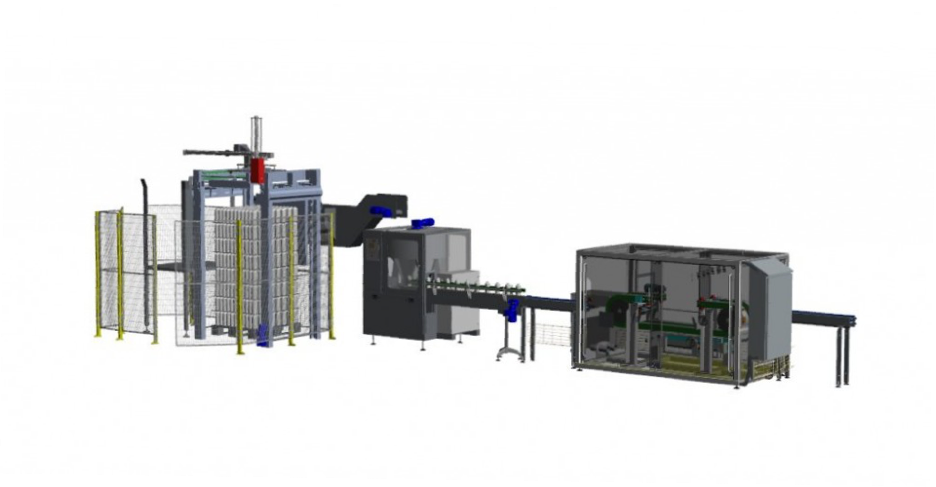

As an example, bellow you can see an illustration showing the start of a production line, which includes three pieces of equipment: A DPB depalletizer for plastic bottles, which feeds a Rotrak Positioner for positioning of the bottles and ends with a Rinser SG-20 that delivers clean bottles to the filler, for filling and capping.
See above images of Sample packaging machinery at the beginning of the production line as an ideal model for example for liquid food bottling companies
